Diopter Adjustment: How to Set It on Binoculars, Spotting Scopes & Riflescopes

The diopter adjustment is a one-minute calibration that most optics owners skip — and it might be the single biggest reason their views aren't as sharp as their glass can deliver. On binoculars and spotting scopes, the diopter compensates for the natural difference in vision between your two eyes, a difference that magnification amplifies. On riflescopes, it serves a different purpose entirely: focusing the reticle to your individual eye.

Skipping this step means one eye is always slightly out of focus (binoculars), or your crosshair is soft against the target (riflescopes). The result is eye strain, headaches, and image quality that falls short of what your optics are capable of. According to Outdoor Life, roughly 90% of binocular owners don't know how to focus their binoculars properly.

TL;DR — Quick Summary▾

The diopter adjustment compensates for the vision difference between your two eyes (binoculars and spotting scopes) or focuses the reticle to your eye (riflescopes). On binoculars: cover the right objective lens, focus your left eye with the center wheel, switch sides, then adjust the diopter ring for your right eye. On spotting scopes: adjust the eyepiece diopter ring on a distant target, then use the main focus knob from that point forward. On riflescopes: point at a plain background and rotate the eyepiece until the reticle is razor-sharp. All three are set-it-once calibrations.

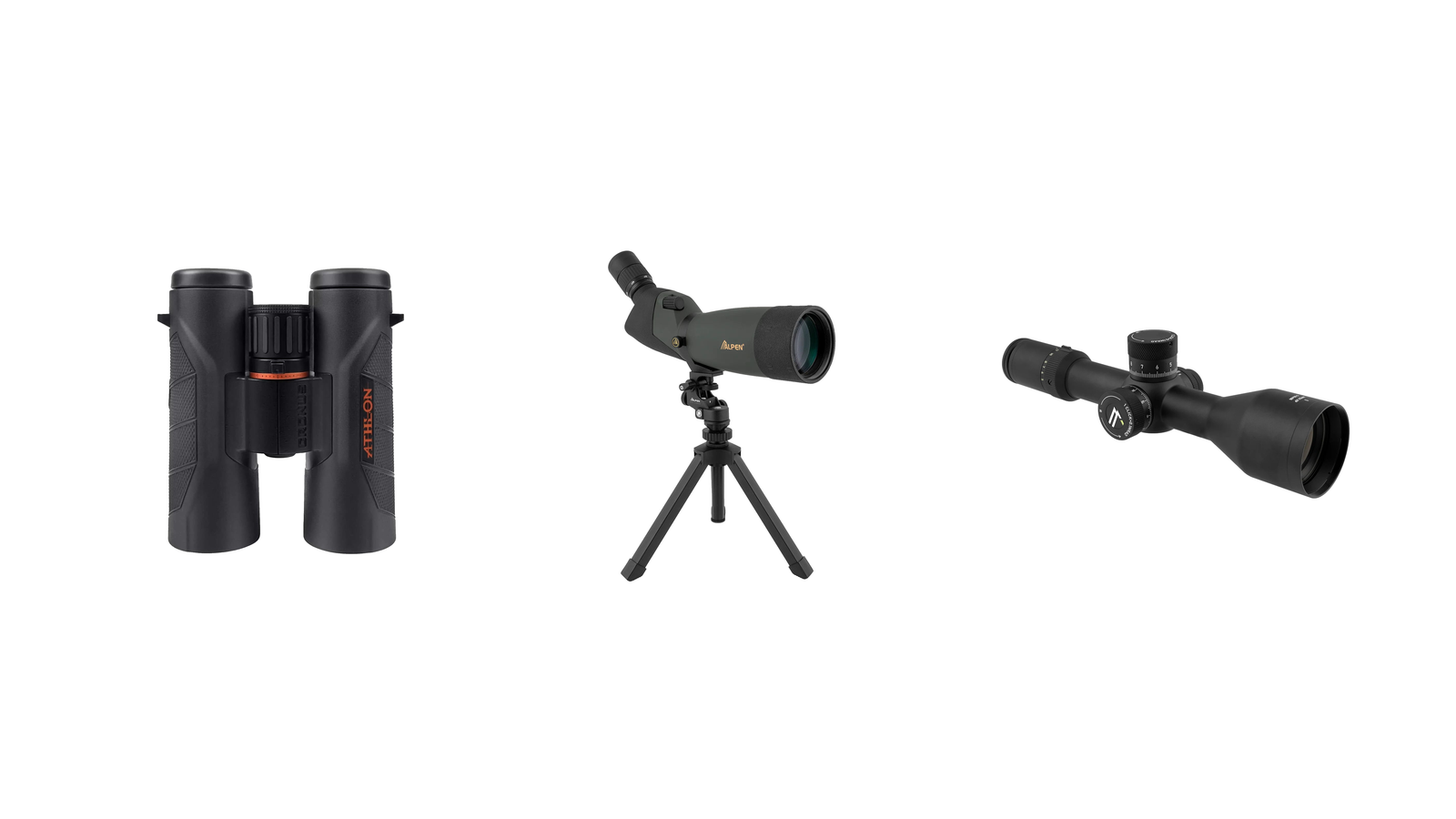

This guide covers the diopter adjustment process for all three optic types — binoculars, spotting scopes, and riflescopes — along with the most common mistakes, locking mechanisms, and tips for eyeglass wearers.

Table of Contents▾

• What the Diopter Actually Does
• Before You Start: Set Up Your Binoculars
• Binocular Diopter Adjustment Step by Step
• Why You Should Cover the Lens — Not Close Your Eye
• Diopter Variations by Binocular Type
• Spotting Scope Diopter Adjustment
• Riflescope Diopter: Focusing the Reticle
• Locking Mechanisms Compared
• Diopter Adjustment for Eyeglass Wearers
• Typical Diopter Range
• Common Mistakes
• How Often to Re-Check Your Diopter
• Frequently Asked Questions
• Sharp Views Start with One Minute of Setup

What the Diopter Actually Does

Every pair of center-focus binoculars has two focusing mechanisms:

• Center focus wheel — moves both eyepieces together. This is what you turn to focus on objects at different distances.
• Diopter ring — adjusts only one eyepiece (usually the right) independently.

The center wheel assumes both of your eyes are identical. They aren't. Even people with perfect 20/20 vision typically have a slight prescription difference between their left and right eyes. At 1x magnification you'd never notice, but at 8x or 10x, that small difference gets amplified into a noticeably softer image in one eye.

The diopter ring corrects for that difference. Once you set it for your eyes, the center focus wheel keeps both barrels in sync as you change focus distance.

Spotting scopes work on the same principle — the diopter on the eyepiece calibrates the optic to your eye, and the main focus knob handles distance changes after that.

Riflescopes use the diopter differently. The eyepiece adjustment on a riflescope focuses the reticle — not the target. Target focus is handled by the parallax knob or side focus. The diopter ensures the crosshair appears razor-sharp against whatever you're looking at.

Before You Start: Set Up Your Binoculars

Before touching the diopter, make sure two other adjustments are correct. Getting these wrong will undermine your diopter calibration.

Interpupillary Distance (Barrel Spacing)

Hold the binoculars up to your eyes and look at a distant object. Pivot the two barrels closer together or farther apart until you see a single, clean circle — not two overlapping images, not a figure-eight, and no dark shadows creeping in from the edges. Most binoculars have a scale on the hinge that you can note for future reference.

Eyecup Position

• If you wear glasses: Twist or fold the eyecups down (fully retracted). This positions the eyepiece lens close enough to your glasses so you can see the full field of view.
• If you don't wear glasses: Extend the eyecups up. This positions your bare eye at the correct distance from the lens (the "eye relief" distance).

With the wrong eyecup setting, you'll either see a reduced field of view (tunnel vision) or struggle to get a comfortable, stable view — both of which make diopter adjustment harder.

Binocular Diopter Adjustment Step by Step

The entire process takes about a minute. You'll do it once, and then you're set.

Step 1: Reset the Diopter to Zero

Locate the diopter ring — it's usually on the right eyepiece, just below the eyecup. Align the index mark with the "0" on the scale to start from a neutral position.

Step 2: Cover the Right Objective Lens

Place the lens cap over the right objective lens (the big lens at the front, on the same side as the diopter ring). If you don't have a cap handy, use your hand or a piece of dark card.

Keep both eyes open. Don't close your right eye — covering the lens achieves the same thing without affecting your vision.

Step 3: Focus Your Left Eye

Pick a stationary object with fine detail — a sign with text, tree bark, brickwork, or a fence post. Something at least 20 meters away works well — the farther the better.

Using the center focus wheel, bring that object into the sharpest focus you can for your left eye. Take your time here. This sets the baseline for everything that follows.

Once you're satisfied, don't touch the center focus wheel again until the process is complete.

Step 4: Switch Sides

Remove the cap from the right lens and cover the left objective lens instead.

Step 5: Adjust the Diopter Ring

Looking at the same object with your right eye (both eyes still open), slowly turn the diopter ring until the image is sharp. Make small adjustments — the diopter has a limited range and it doesn't take much movement.

If you can't get a sharp image, go back to Step 2 and refine your left-eye focus with the center wheel before trying again.

Step 6: Verify

Remove the lens cap entirely. Both eyes should now see a sharp, comfortable image. If one eye still seems slightly soft, repeat from Step 2.

Step 7: Note Your Setting

Check where the index mark sits on the diopter scale. You can make a mental note, or place a small dot of correction fluid or nail polish at your setting. That way, if someone else uses your binoculars and moves the diopter, you can reset it instantly.

From this point forward, you only need the center focus wheel to focus at different distances.

Why You Should Cover the Lens — Not Close Your Eye

Many guides suggest simply closing one eye. That works in a pinch, but it's not ideal.

When you close one eye, the muscles around both eyes adjust — squinting or squeezing changes the shape of the open eye slightly, which temporarily shifts its focus. Celestron's official guide explains it this way: "When you close one eye, your visual acuity in the other eye is slightly changed due to the intricate and complex arrangement of muscles surrounding both eyes."

Covering the objective lens with a cap keeps both eyes open and relaxed in their natural state. The covered eye simply sees darkness while the other eye focuses normally. The result is a more accurate calibration.

This is the single most common mistake people make when setting their diopter, and it's echoed by Vortex, Nikon, and the Cornell Lab of Ornithology — all recommend covering the lens rather than closing your eye.

Diopter Variations by Binocular Type

Not all binoculars put the diopter in the same place, and some work differently. Here's what you might encounter:

Standard Right-Eyepiece Ring

The most common design. The diopter ring sits on the right eyepiece barrel, just below the eyecup. Marked with a "+/0/−" scale. The step-by-step procedure above covers this type.

Lockable Diopter Rings

Found on many mid-range and premium binoculars. The ring locks in place after adjustment to prevent accidental bumps from changing your setting. The exact mechanism varies — some require pulling the ring up to unlock, others twist to disengage — but the concept is the same: unlock, adjust, lock.

Center-Column Diopter

Some models (notably Swarovski EL binoculars) integrate the diopter adjustment into or near the center focus wheel rather than on an eyepiece barrel. The procedure is the same — only the physical location of the ring changes.

Left-Eyepiece Diopter

Less common, but it exists. If your diopter ring is on the left eyepiece, reverse the procedure: cover the left lens first, focus the right eye with the center wheel, then cover the right lens and use the diopter ring for the left eye.

Zoom Binoculars

If your binoculars have a zoom feature, set the magnification to its highest setting before starting the diopter adjustment. Calibrating at maximum zoom gives you the most precise focus, and the setting will hold at lower magnifications too.

Individual-Focus Binoculars (No Center Wheel)

Some binoculars — especially marine models and classic Porro-prism designs — have no center focus wheel at all. Each eyepiece focuses independently with its own ring. To set these up, focus each eye separately on a distant object. Once set, your eyes naturally accommodate for different distances, so you rarely need to refocus. The trade-off is less precise close-range focusing compared to center-focus models.

Spotting Scope Diopter Adjustment

Spotting scopes have a single eyepiece, so the diopter adjustment is simpler than binoculars — there's no second eye to balance against. The diopter ring on the eyepiece calibrates the optic to your individual eye, while the main focus knob handles distance changes.

The procedure:

1. Locate the diopter ring — it's on the eyepiece, separate from the main focus knob on the scope body. Some eyepieces integrate it as a twist ring at the base; others use a pull-up-and-turn mechanism.
2. Pick a distant target with fine detail (text on a sign, tree branches, fence wire).
3. Adjust the diopter ring until the image is sharp for your eye.
4. Lock it if your eyepiece has a locking mechanism.
5. Use the main focus knob from this point forward to focus on objects at different distances.

If multiple people share a spotting scope (common at a shooting range or bird blind), each person needs to re-adjust the diopter when they take over — it's a per-user calibration.

Explore our spotting scope collection for models across the range.

Riflescope Diopter: Focusing the Reticle

The diopter adjustment on a riflescope serves a fundamentally different purpose than on binoculars. It focuses the reticle — not the target. Target focus is handled separately by the parallax adjustment (side focus knob or adjustable objective).

A soft reticle causes two problems: reduced aiming precision, and eye strain as your eye constantly tries to sharpen the crosshair. Setting the diopter correctly takes about 30 seconds and eliminates both issues.

How to Set It

1. Point at a plain, evenly lit background — an overcast sky, a white wall, or a blank ceiling. Do not look at the sun. You want no target detail competing with the reticle.
2. Glance through the scope briefly (2-3 seconds) and note whether the reticle lines are sharp or slightly fuzzy.
3. Rotate the eyepiece ring — most riflescopes use a fast-focus ring at the rear of the eyepiece bell. Turn it until the reticle snaps into sharp focus.
4. Look away, then look back to verify. Your eye can compensate for a slightly soft reticle if you stare too long, so brief glances give a more honest assessment.

LPVO Note

If you're setting the diopter on a low-power variable optic (LPVO), set it at 1x magnification, not at the high end. At 1x the reticle appears smallest and focus errors are most visible, giving you the most precise calibration.

Fast-Focus vs. Standard Eyepiece

Most modern riflescopes use a fast-focus eyepiece — an inner ring that rotates while the eyepiece housing stays fixed. Older or budget scopes may require rotating the entire eyepiece shell. The principle is the same either way.

Browse our riflescope collection to see available options.

Locking Mechanisms Compared

A locking diopter prevents your setting from shifting during transport or when pulling binoculars out of a case. Here's how the common mechanisms work:

If you frequently hand your binoculars to others or toss them in a bag, a locking diopter is worth prioritizing. Non-locking rings can shift by half a diopter from a single bump — enough to cause noticeable softness in one eye.

Diopter Adjustment for Eyeglass Wearers

A common misconception is that eyeglass wearers don't need to set the diopter. They do. Glasses correct each eye's overall prescription, but the small difference between your two eyes at 8x or 10x magnification still needs compensation — that's what the diopter ring does.

Three rules for glasses wearers:

1. Fold or twist eyecups down (fully retracted). This positions the eyepiece lens close enough to your glasses to see the full field of view. With eyecups extended, you'll lose the outer edges of the image.
2. Adjust the diopter with your glasses on. Calibrate under the same conditions you'll actually use the optics.
3. The same applies to riflescopes. If you shoot with glasses, set the eyepiece diopter while wearing them.

The procedure is otherwise identical — cover, focus, switch, adjust. The diopter corrects what your glasses don't: the residual difference between your two eyes at magnification.

Typical Diopter Range

Binoculars and spotting scopes specify a diopter compensation range, usually in the +/− format. This tells you how much correction the mechanism can apply.

Most people fall within +/− 2 diopters of difference between their eyes, so even budget optics handle it fine. If you have a large prescription disparity and find that your diopter ring maxes out before the image is sharp, that's a sign you need optics with a wider compensation range — not that you're doing something wrong.

Common Mistakes

• Closing one eye instead of covering the lens — Changes the focus of the open eye due to muscle interaction. Use a lens cap or your hand instead.
• Turning the center focus wheel during Step 5 — The center wheel should not move after you've focused the left eye. Only the diopter ring moves in Step 5.
• Adjusting the diopter first — Always set the center focus wheel for your non-diopter eye first. Starting with the diopter means you have no stable baseline.
• Skipping the zero reset — Starting from a random position makes it harder to make controlled adjustments.
• Over-adjusting — The diopter range is small. If you've turned it more than a few clicks past zero and the image is getting worse, you've gone too far. Turn it back.
• Rushing — Give your eyes a moment to settle after each adjustment. Focus perception can lag slightly, especially in low light.
• Assuming eyeglass wearers don't need adjustment — Glasses correct overall vision, not the between-eye difference at magnification. Set the diopter with your glasses on.
• Focusing on a nearby object — Use a target at least 20 meters away. Close objects introduce too much focus shift across the diopter range.

How Often to Re-Check Your Diopter

Once set, the diopter should stay put. Unlike the center focus wheel, which you'll turn constantly as you shift between near and far objects, the diopter is a set-it-and-forget-it adjustment. You only need to re-adjust if:

• Someone else uses your binoculars and moves the diopter ring
• The ring gets bumped accidentally (common with non-locking diopters during transport or when pulling binoculars out of a case)
• Your vision prescription changes
• You're switching between very different viewing scenarios (e.g., daylight birding to nighttime stargazing), though this is rare

A quick way to check: look through your binoculars at a distant object and focus with the center wheel. If both eyes look equally sharp, your diopter is still good. If one eye seems slightly softer than the other, re-run the calibration process.

If you find your diopter drifting frequently, look into binoculars with a lockable diopter ring — it's a worthwhile feature that prevents accidental changes.

Frequently Asked Questions

Does the diopter replace my glasses?▾

No. The diopter compensates for the small difference in prescription between your two eyes — it doesn't correct your overall vision. If you normally wear glasses, keep them on and adjust the eyecups down.

What if my binoculars don't have a diopter ring?▾

You likely have individual-focus binoculars where each eyepiece focuses independently. Focus each eye separately on a distant object and you're set.

Can I damage my binoculars by adjusting the diopter?▾

No. The diopter ring has a limited range of travel with built-in stops at each end. You can't over-rotate it.

I adjusted the diopter but the view seems worse — what happened?▾

The most likely cause is accidentally moving the center focus wheel during Step 5. Reset the diopter to zero and start the process over from Step 2.

Do I need to re-adjust the diopter every time I use my binoculars?▾

No. The diopter is a one-time calibration for your eyes. After it's set, just use the center focus wheel to focus on objects at different distances. Only re-adjust if the ring gets moved.

Do spotting scopes have diopter adjustment?▾

Yes. Most spotting scope eyepieces include a diopter ring that works the same way — it calibrates the optic to your individual eye. The main focus knob on the scope body then handles distance focusing. If you share a scope with other users, each person should set the diopter when they take over.

Is riflescope eyepiece focus the same as diopter adjustment?▾

Same concept, different application. On a riflescope, the eyepiece focus (sometimes called the diopter) sharpens the reticle to your eye — it doesn't focus on the target. Target focus is handled by the parallax or side-focus knob. Both adjustments are set-once calibrations for your individual vision.

What diopter range do I need?▾

Most people have less than +/− 2 diopters of difference between their eyes, so standard binoculars handle it comfortably. If you have a significant prescription disparity and find the diopter ring maxing out, look for optics with a +/− 4 or wider range. Premium binoculars from brands like Swarovski and Zeiss often achieve +/− 5–6 in practice, even when rated at +/− 4.

Sharp Views Start with One Minute of Setup

The diopter adjustment is a one-minute calibration that makes a real difference in image sharpness and viewing comfort — whether you're using binoculars, a spotting scope, or a riflescope. The key points: cover the lens instead of closing your eye, focus the baseline eye first, then fine-tune the diopter for the other eye. For riflescopes, focus the reticle against a plain background. Once it's set, leave it alone.

If your optics have felt slightly "off" since you got them, the diopter is the first thing to check. It takes a minute to fix and the improvement is immediate.
